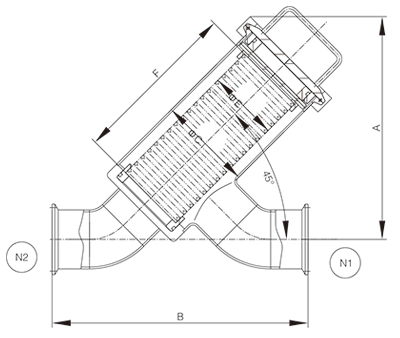

Dimensions

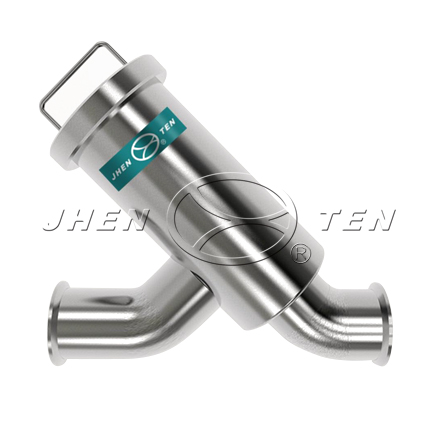

With reasonable design, JTGYG Y-Type Filter achieves advantages of no dead corner, low resistance and easy drainage. Filter adopts multiple polishing processing steps to ensure that the interface Ra reach to 0.4μm close to sanitary level. All of the surface is mirror polished.
Feature
●The filter inner and outside surface using mirror polish, interface Ra reaching to 0.4μmup to sanitary level.
●Filter housing adopts quick connection, easy to handle, economical and practical.
Application
●All kinds of liquid particle filtering.
●Edible oil, beverage, wine filtration.
●Chemical filter.
●Compressors, pumps, instrumentation and other equipment pre-filtering and protection.
Operating Conditions
|
Max operating pressure |
0.6MPa、1.0MPa |
| Max operating temperture | 150℃ |
Material
|
Tube cartridge |
304、316 |
Connection
|
Connection of shell |
Tri-clamp |
Surface Finish
|
Polishing precision |
0.4μm Inner surface Ra≤0.4μm |
Dimension Parameters
| In-outlet | |||||
| 1" | 1.5" | 2" | 2.5" | 3" | |
| Total height | 185 | 240 | 300 | ||
| The distance from inlet to center | 220 | 275 | 325 | ||
| Shell diameter | Φ76 | Φ101.6 | Φ129 | ||
| The diameter of the filter screen | Φ50 | Φ76 | Φ100 | ||
| The length of the filter screen | 135 | 180 | 225 | ||
The above-mentioned data is the standard, it can be customized according to customer's requirements；length: mm.
