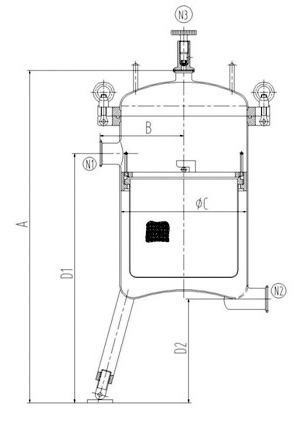

Dimensions

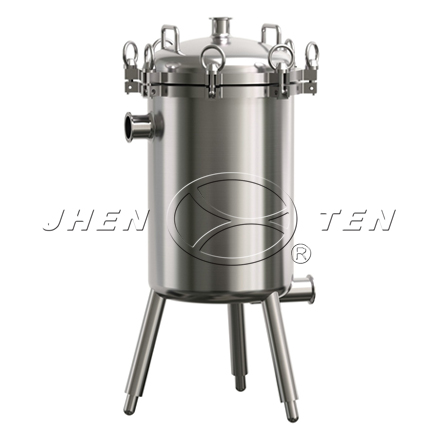

JTGLF Basket Type Filter Housing is a improved small basket strainer which can remove a small amount of solid particles in the liquid, also can protect compressor, pump, instruments and other equipment to work normally.
JTGLF Basket Type Filter Housing using multichannel polishing processing to ensure the interface Ra reach to 0.6um close to sanitary level. All of the surface is mirror polished.
Feature
The filter inner and outside surface using mirror polish, interface Ra reach to 0.6um close to sanitary level.
Filter shell can use Eyebolt connection or quick-open connection, easy to Operating, economical and practical.
Small size filters install adjusting screw nut at the bottom of the leg.
Application
All kinds of liquid particle filtering
Edible oil, beverage, wine filtration
Chemical filter
Compressors, pumps, instrumentation and other equipment pre-filtering and protection.
Surface Finish
|
Polishing precision |
Inner surface Ra≤0.6μm , |
Operating Conditions
|
Max Operating Pressure |
0.6MPa, 1.0MPa |
|
Max Operating Temp. |
150℃ |
Material
|
Vent valve |
304, 316L |
|
Eyebolt |
304 |
|
Stabilizer blade |
304 |
Connection
|
Shell connection |
Flange (Eyebolt), Tri-clamp |
|
Vent valve N3(optional) |
1.5"Tri-clamp |
|
Dimension Parameters |
1 Basket |
||
|
16” |
25” |
40” |
|
|
A:Total height(excluding pressure gauge) |
800 |
1040 |
1170 |
|
B:The distance from inlet to center |
200 |
235 |
250 |
|
C:Diameter |
Φ300 |
Φ350 |
Φ400 |
|
D1:The height from inlet N1 to the ground |
600 |
800 |
900 |
|
D2:The height from outlet N2 to the ground |
250 |
300 |
300 |
|
In-outlet N1, N2 Dimension |
1.5”/2”/2.5” |
||
The above-mentioned data is the standard, it can customize according to customer's requirements.
